Fitness Equipment for Architects and Planners: 2026 Guide

For architects and planners, fitness equipment planning involves selecting and integrating exercise equipment into the space with the goal of delivering a fully operational fitness area. When specifying fitness equipment for architects and planners in 2026, exercise areas, building interfaces, and installation considerations are therefore part of the equipment selection process from the very beginning.

Why Fitness Equipment Is Important for Architects and Planners

A fitness room isn’t just a furnished leftover space. A cable machine needs room for its range of motion, a reformer needs space for classes and changing positions, and a free-weight area needs space for movement and storage. If you only mark the outer dimensions of the equipment, you’ll lack the foundation for a smoothly running facility.

Hotel projects, boutique studios, and medical office spaces bring together a variety of clients. Operators define the scope of services, specialist planners review building interfaces, and suppliers finalize the specifications. Your task is to translate these requirements into a coordinated plan before the order is placed.

Kraftathlet provides Pilates, strength training, and recovery equipment and oversees delivery, installation, assembly, and follow-up service. This covers the coordination of the equipment; structural engineering, building code compliance, and technical building planning remain separate responsibilities.

For your 2026 project documentation, therefore, what matters is not the longest list of equipment, but a clear breakdown: Which piece of equipment fulfills which operational task, requires how much space, and necessitates what structural conditions?

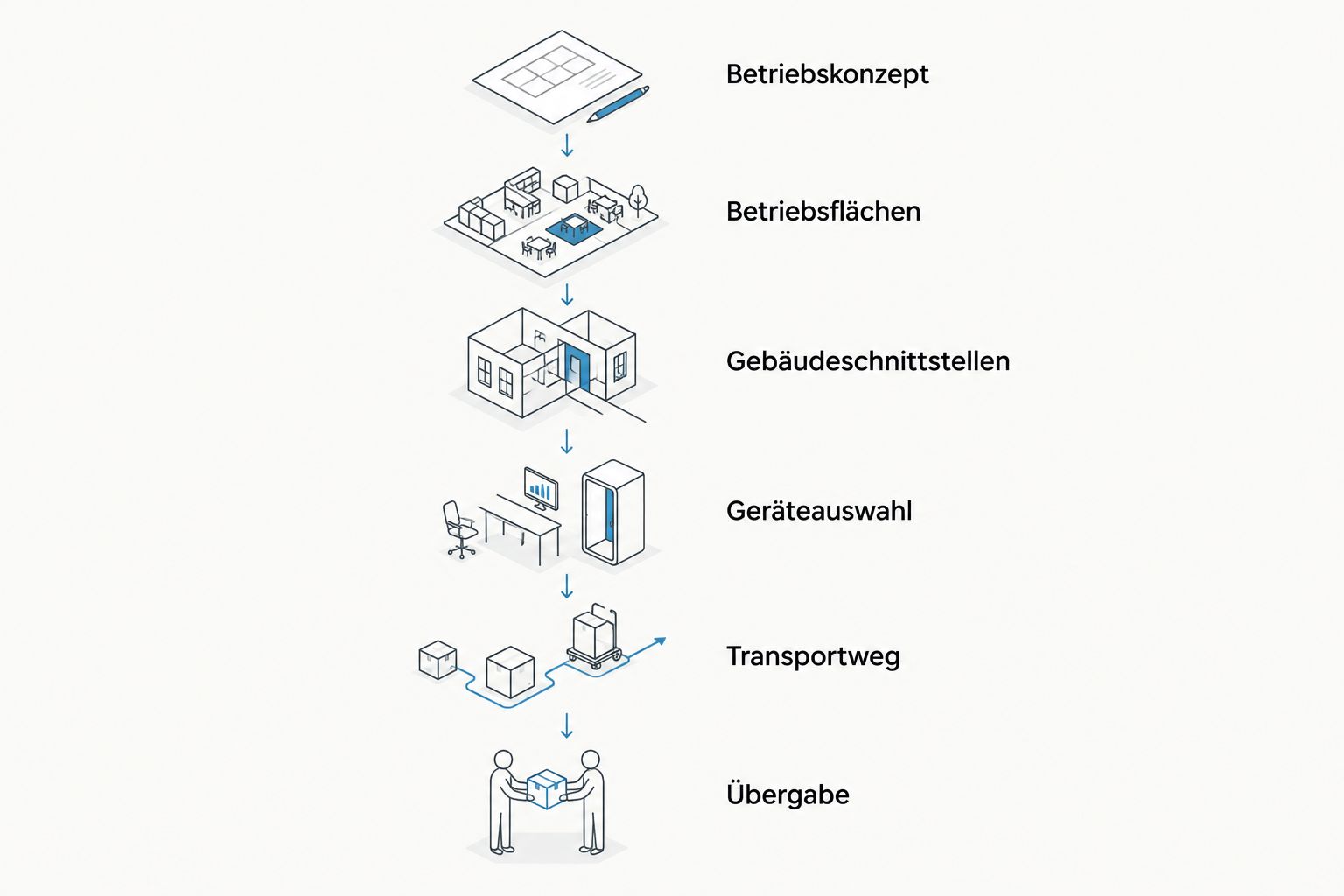

How to Plan Fitness Equipment: From Layout to Handover

Define the operational concept before selecting a product

Start with an interview with the facility operator and a simple spreadsheet. Note who uses the space, whether supervision is provided, and which activities are scheduled to take place at the same time. To do this, you don’t need gym planning software or a ready-made shopping cart just yet.

A Pilates studio operates on a different set of principles than a hotel fitness center open to the public. When classes are in session, the instruction, visual connections, and group rotations must all function smoothly. In a hotel, the focus is on intuitive use, clear pathways, and coordination with guest operations.

Also, determine whether strength training, Pilates, and recovery actually belong together. A shared space only makes sense if usage, supervision, and space requirements align. A quiet area right next to a heavily used free-weight zone is an interface that you’ll need to address specifically.

For your 2026 space allocation plan, distinguish between mandatory requirements and future additions. Describe usage, staffing, simultaneous occupancy, and planned expansions in separate fields. This will help the operator identify which decisions pertain to the opening and which will be addressed in a later phase of development.

Draw operational areas instead of just the outlines of equipment

First, draw the equipment as simple, to-scale rectangles in the floor plan. Then add the areas that will actually be occupied during use. Be sure to distinguish between equipment placement, movement, operation, and access.

With the Reformer, planning doesn't stop at the exercise surface. Check access from the intended sides, the instructor's position, and where accessories are stored. With the cable machine, different pull directions must be compatible with the rest of the room layout.

An open area must not be designated both as a necessary passageway and as a regular practice area at the same time. Clearly mark any overlaps instead of hiding them behind transparent equipment diagrams. Pay special attention to the situation when adjacent stations are in use at the same time.

Also draw doors, radiators, columns, and existing fixtures to scale. An open door, a pulled-out drawer, or accessories left out of the way can alter the usable area. What matters is the actual state of use, not just how tidy the room looks.

Once the initial layout is finalized, Kraftathlet can work with you to select the equipment and coordinate the corresponding delivery and installation. The advantage lies in the integration of product selection and implementation. However, spatial approval is still based on the specific documentation and your project, not on a general design proposal.

Check equipment dimensions, loads, and building interfaces separately

For each model listed, enter the confirmed dimensions into an equipment inventory. Additionally, document the net weight, permitted use, mounting requirements, and necessary connections, to the extent that these are relevant to the respective piece of equipment. Missing information must not be replaced with an estimated value.

Specific pieces of equipment illustrate just how varied the design specifications can be: According to the product specifications, the Titanium Strength Black Series Pec Deck measures 149 × 132 × 201 cm. The Ropeflex RX2500 is listed as measuring 122 × 89 × 231 cm and weighing 73 kg. The Titanium Strength rack, which has 3 height settings for hex barbells, measures 148 × 64 × 106 cm.

These dimensions are not general space recommendations. They describe the equipment itself, not its total operational footprint. For the dumbbell rack, for example, you must also consider the intended configuration and access to the shelves; for the cable machine, you must take the intended use into account.

Also, distinguish between the equipment’s weight, the training load, and the effects on the building. A machine’s specified load capacity does not determine whether a floor slab is suitable. Forward the equipment-specific documentation to the responsible structural engineer and coordinate mounting details before installation.

When designing the floor structure, consider the intended use, cleaning requirements, equipment placement, and sound transmission together. A floor covering does not replace an acoustic assessment. For water-carrying or electrically powered equipment, submit the manufacturer’s requirements to the relevant specialist planner before determining connections or installations.

Select devices based on usage and operational procedures

First, create a general description for each station. For example, describe a supervised Pilates area, a guided strength training station, or an area for free training. Only then should you assign specific models.

This prevents a product chosen too early from dictating the entire layout of the space. When selecting a reformer, consider not only its dimensions but also the training concept and the intended accessories. When selecting a multi-gym, check its operation, adjustment options, and how easily it can be switched between users.

Kraftathlet is an ideal equipment partner for architects and planners who want to coordinate the selection, installation, and assembly of equipment together. However, this support does not replace an independent review of the building requirements. Be sure to document this distinction in writing for your client as well.

Compare offers based on the same scope of services. The key factor is whether accessories, delivery, installation, and handover are included or must be agreed upon separately. A device that looks similar is not necessarily an equivalent planning alternative if its operation or installation differs.

Therefore, be sure to review alternative models not only from a business perspective but also in terms of spatial considerations. Update the equipment list, floor plan, and interfaces as soon as a model changes. A sample approval should clearly specify the specific model and its intended scope of equipment.

Check the shipping route before approving the order

Walk the route from the delivery point to the final installation location. A floor plan of the fitness room is not sufficient for this. Note any doors, hallways, changes in direction, stairs, and, if applicable, the elevator.

The key factors are the shipping dimensions and the weight of the parts to be delivered. The external dimensions of the assembled unit do not indicate whether it will fit through the stairwell. Check with the supplier to determine the units in which the items will be delivered and which assembly steps can be completed on-site.

Also check the condition of the building at the scheduled delivery time. A transport route that is open during the structural phase may be restricted after interior finishing work is complete. Protective measures for floors and walls, as well as responsibility for packaging materials, should be included in the coordination.

To ensure the studio opens in 2026, work with the construction management team and the operator to determine the sequence of steps: space handover, delivery, installation, assembly, and final handover. Binding deadlines must be included in the project-specific agreement. General product information is not a substitute for this.

Finally, make sure to specify who is responsible for verifying the on-site conditions. This includes the accessibility of the delivery route, the prepared installation area, and the agreed-upon technical connections. Without this clarification, it remains unclear who is responsible for identifying any discrepancies prior to delivery.

Document approval, handover, and subsequent service

Compile the results in a shared device directory. A spreadsheet is sufficient, as long as each item is clearly labeled and the associated documents remain accessible. Clear version control is more important than the file format.

Assign usage, installation location, confirmed product data, and pending approvals to each item. Also, assign responsibility for building interfaces, delivery, and installation. This makes it clear which issues have already been resolved and which are still preventing an order from being placed.

During the handover, check that the agreed-upon scope of services matches the equipment that was actually installed. This includes accessories, documentation, and any documented discrepancies. Also clarify with the operator who will be responsible for training, cleaning, and organizing future maintenance.

Plan for service access as early as the layout phase. A piece of equipment that can only be accessed for maintenance after adjacent components have been removed creates an additional operational dependency. Therefore, incorporate the equipment-specific service requirements into the planning process rather than addressing them only after installation.

Which furnishings go best with which room design?

The following comparison categorizes device types based on their use in planning. The limitations describe planning tasks; they are not quality assessments. A single device does not replace a comprehensive operational concept.

Option	Particularly suitable for	Planning Advantage	Significant limitation
Hegren TALMA 62 Reformer	Reformer studio projects offering supervised Pilates classes	A Specific Model as the Basis for Coordinating Pilates Studios	Check classroom, access, and accessory areas separately
Cable Pull Station	Supervised training areas with a variety of pulling exercises	Different exercises can be scheduled at a single station	Train directions and simultaneous use require a separate space assessment
Guided Power Machine	Clearly Defined Strength Training Stations in the Gym Concept	Clear assignment of a station to the intended training program	The station is more strictly defined in terms of function than an open training area
Free-weight area with storage	Strength training zones with a free choice of exercises	Equipment selection and configuration can be tailored to the operator's concept	Addressing Storage, Movement, and Sound Transmission Together
Recovery Partition	Hotels and studios with their own wellness facilities	A separate layout plan for additional equipment is available	Technical requirements vary by device; there is no one-size-fits-all approach to connection planning

For mixed-use concepts, the order is important: First define the primary use, and then add additional areas. An additional category of facilities only makes sense if staffing, space, and building systems are also factored into the plan . A wider range of options is no substitute for a clearly defined use.

Common Planning Mistakes in Fitness Rooms

Confusing the outline of a device with its actual space requirements

A device drawn to scale only proves that its outline fits within the space. Also check its use, access, instruction, and maintenance. Mark these areas on the same plan so that the operator can assess the actual occupancy.

Determine whether the item will be brought in only after the interior work is complete

A suitable installation location won't help if the unit can't navigate the final turn. Confirm the transport dimensions and installation sequence before placing your order. Make a note of which openings and access routes must remain accessible until delivery.

Derive Technical Approvals from Product Names

Terms such as “studio equipment,” “professional rack,” or “compact station” do not constitute approval for a specific floor installation. Use verified product documentation and project-specific technical planning. The same applies to mountings, connections, and the assessment of sound transmission.

Remove accessories and operational organization from the room layout plan

Boxes, mats, handles, and cleaning supplies need a designated place. Add storage areas to the floor plan and discuss the workflow between different uses. Clear movement areas must not be turned into unplanned storage space.

FAQ

Finally: Be sure to check for future replacements as well

The initial delivery is not the final transport step. For permanently installed room components, check whether equipment can be removed and replaced later. A successful installation does not guarantee that replacement will be possible after all installations are complete.

Here’s a specific final question to consider for your 2026 planning: Will the documented transport route remain usable in the completed building? Include the answer in the handover documents . Request a proposal for the configuration, including a list of equipment and the agreed-upon scope of delivery and installation.
