Hyperbaric chamber installation in a wellness facility is the technical and spatial preparation before the chamber is even delivered – from the floor construction to the power supply. A hotel spa or day spa requires different planning than a private residence: more space, higher daily throughput, and staff to operate the equipment between treatments.
- Hyperbaric chamber installation in wellness facilities usually fails due to floor load, the electrical circuit, or door width – not the equipment itself.
- Portable soft-shell chambers like the Flow 90 require less space than hard-shell or multi-person models.
- A dedicated electrical circuit and clearance from the wall for maintenance must be included in every plan, regardless of the chamber type.
- ATA ratings such as 1.5, 2.0, or 2.4 ATA determine the chamber's weight, connection requirements, and space requirements.
- Kraftathlet clarifies electrical and space requirements during the consultation before the chamber is ordered.
Why installation for wellness facilities requires separate planning
A private user places a chamber in their bedroom and operates it themselves. A wellness facility must integrate the chamber into ongoing spa operations: multiple guests per day, a schedule with massage and sauna times, and staff to clean and set up the equipment between treatments. While the selection of the right hyperbaric chamber for the wellness area determines capacity and pressure range, without proper installation planning, every chamber remains a piece of furniture without an operating permit.
Then there is the space itself: A hotel spa often has a room designated whose structural integrity, ceiling height, and emergency exits were never planned with a chamber weighing several hundred kilos in mind. This applies to fitness rooms in hotels just as much as day spas – rooms that were originally built for other purposes. Anyone planning an opening in 2026 should clarify these questions before ordering, not after.
Measure the room before you select a chamber
The ceiling height at the installation site determines whether a hard-shell chamber can be installed at all – not the ceiling height at the entrance. Just as important is the clear door width along the entire delivery route, not just at the building entrance.
- Ceiling height directly at the planned installation site
- Clear door width along the entire delivery route, including elevators
- Floor space including room for staff and wheelchair access
- Distance to the nearest outlet and ventilation outlet
- Emergency exit width according to the building's fire safety plan
Check the floor load and subfloor
A hyperbaric chamber with a frame and compressor weighs significantly more than a normal spa piece of furniture, and the load is often concentrated on casters or support feet rather than evenly distributed. In upper floors or older buildings, it is worth consulting a structural engineer beforehand, especially if the room was previously used as an office or storage area and is not designed for equipment of this size. Hard-shell models place more weight on the floor than portable soft-shell chambers.
Clarify the power supply before ordering
Every chamber requires its own dedicated, protected electrical circuit – shared circuits with a sauna, shower, or kitchen will lead to outages during operation exactly when a guest is in the chamber.
- Dedicated, protected electrical circuit for the chamber and compressor
- Mains voltage and circuit protection according to the manufacturer's specifications for the selected model
- Separate location for the compressor or oxygen concentrator, outside the treatment area
- Access for maintenance personnel without interrupting operations
This is where it pays to look at the connection requirements of the respective model, because an Orbit 2.0 ATA has different requirements than a portable Flow 80. Kraftathlet clarifies the electrical requirements for each model during the consultation before the chamber is ordered – this saves a second electrician visit after delivery.
Plan ventilation and the location of the concentrator
The compressor or oxygen concentrator runs during the entire treatment and requires clearance from the wall for air circulation. Directly next to a sauna or steam room is a poor location: the moisture there will damage the filters and electronics. The operating noise should also not overpower the spa's relaxation area, which can happen quickly in open-plan concepts.
Clarify building and legal requirements with your operator
Fire safety, emergency exit width, and possible reporting requirements vary depending on the federal state and the building's use. Ask the supplier specifically which documents are required to register the device, because this varies between chamber type and location. Also clarify the insurance of the device before it is placed in the room – not after.
Organize delivery and on-site assembly
A chamber weighing several hundred kilos does not simply fit through the supplier's door. Without an elevator, crane work may be required, and the on-site assembly time depends on the model – a multi-person lounge takes longer than a portable soft-shell chamber. Kraftathlet handles delivery and on-site assembly in Germany and Austria and plans the route in advance with the operator.
Train your staff before opening
Operation, cleaning between treatments, and a clear emergency protocol are part of the team onboarding before the first guest lies in the chamber. Also clarify who the contact person at the supplier is if a maintenance question arises – waiting time in an ongoing spa operation is more expensive than elsewhere.

Which chamber design is right for your facility?
| Option | Best for | Main limitation |
|---|---|---|
| Portable soft-shell (e.g., Flow 90, Oasis) | Boutique spas with one simultaneous treatment, flexible room use | Lower pressure range, less impressive than hard-shell |
| Hard-shell single chamber (e.g., Orbit 1.5/2.0 ATA) | Wellness areas with a fixed installation and higher pressure level | Heavier, fixed installation required |

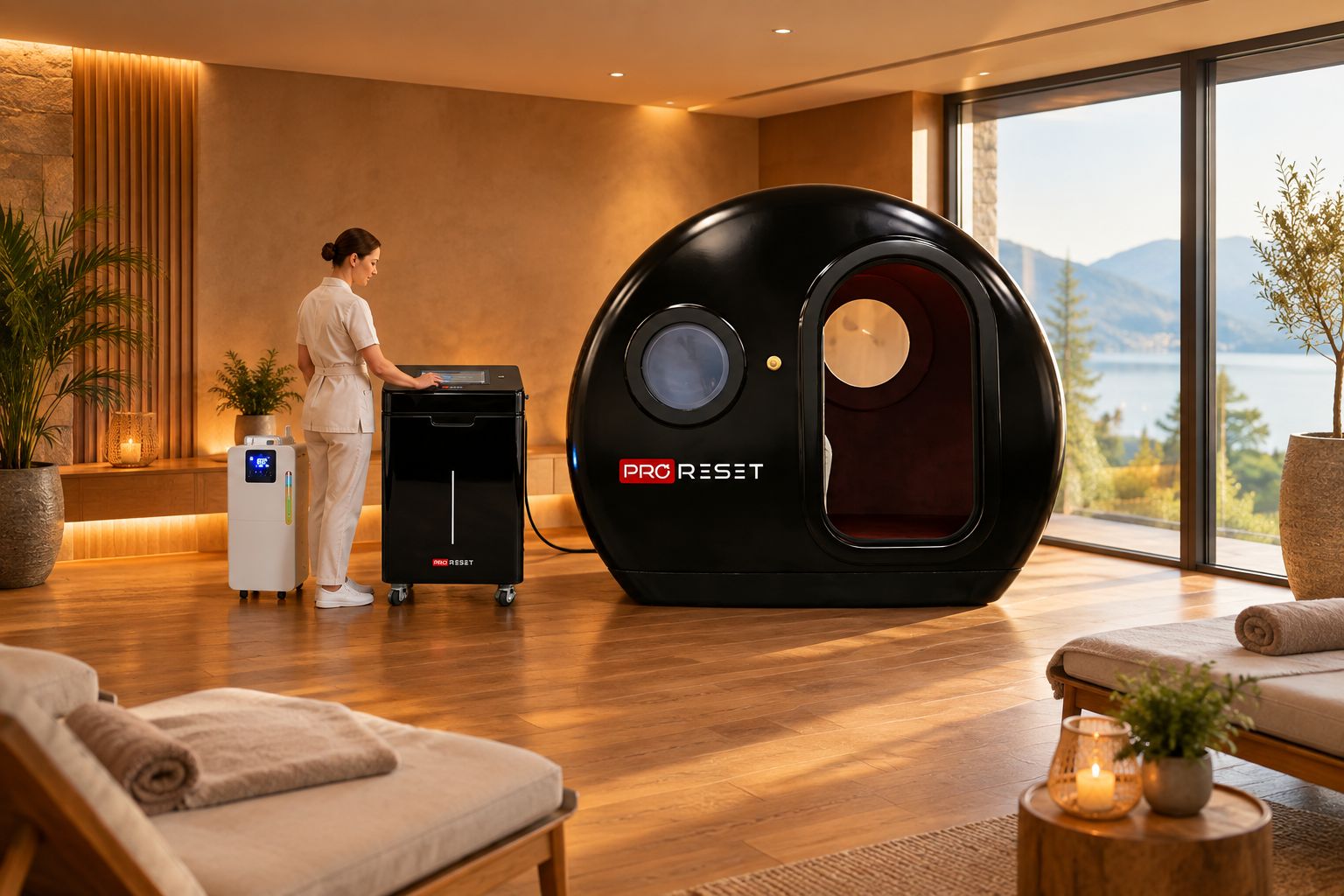

| Multi-person lounge (e.g., Helios Duo, 1.5/2.0 ATA) | Hotel spas with couple or group treatments | Larger space requirements, higher ceiling height required |
| Modular seating chamber (e.g., Petra, 2.0/2.4 ATA) | Facilities with varying capacity requirements | More complex installation, longer lead time |
For a boutique spa with one simultaneous treatment, the portable soft-shell chamber is the right choice – Assessment: fits. For a hotel spa with couple treatments, the multi-person lounge is worth it if the ceiling height is sufficient – Assessment: check carefully. For facilities without a fixed room layout, the modular seating chamber is an option, but with a longer lead time – Assessment: plan first, then order.

Anyone looking for the right chamber for their facility will find a selection here with different space and capacity requirements:
Common Installation Mistakes in Wellness Facilities
- Selecting a room based on appearance rather than structural integrity and ceiling height
- Not having the electrical circuit separately protected, but sharing it with a sauna or kitchen
- Measuring the door width and emergency exit only after ordering, not before
- Training staff only on the opening day, without a test run with the supplier
- Placing the concentrator too close to the wall, blocking maintenance access
These five points come up again and again in consultations with wellness facilities, regardless of whether the facility is opening for the first time in 2026 or renovating existing space.
FAQ
How much space does a hyperbaric chamber need in a wellness facility?
It depends on the chamber type: portable soft-shell chambers require less space than hard-shell models or multi-person lounges. In addition to floor space, the ceiling height at the planned installation site and room for staff are also crucial.
Does a hyperbaric chamber need its own electrical circuit?
Yes, a separate, protected electrical circuit is standard to prevent failures during use. The compressor or concentrator should also be located separately outside the treatment area.
How high does the ceiling need to be for a hyperbaric chamber?
This varies depending on the model – hard-shell chambers and multi-person lounges require more ceiling height than portable soft-shell chambers. Measure the ceiling height directly at the planned installation site, not at the room entrance.
What is the difference between soft-shell and hard-shell chambers?
Soft-shell chambers are portable, lighter models with a lower pressure range and flexible installation options. Hard-shell chambers are heavier, require fixed installation, and cover a higher pressure range, such as 2.0 ATA.
How long does it take to install a hyperbaric chamber on-site?
The installation time depends on the model and the accessibility of the building – a multi-person lounge takes longer than a portable chamber. Kraftathlet clarifies the timeline during the consultation before delivery.
Does a hyperbaric chamber in a wellness facility require a permit?
This varies depending on the federal state, chamber type, and use of the building. Ask the supplier about the necessary documents for registration before you finalize the room setup.
Who is allowed to operate a hyperbaric chamber in a spa?
Staff who have been trained before opening – operation, cleaning between treatments, and an emergency protocol should be part of the onboarding. A dedicated contact person at the supplier should be available for follow-up questions.
What does ATA mean for a hyperbaric chamber?
ATA stands for the pressure range of the chamber, for example 1.5, 2.0, or 2.4 ATA. Higher ATA values generally involve more weight and higher requirements for structural integrity and power supply.
One more thing
The point where most projects get stuck is not the device – it is the delivery. Getting a model weighing several hundred kilos through a stairwell without an elevator is a logistics problem, not a technical one. Clarify the access route and door width before you decide on a model, not after. You can find the current chambers and other recovery equipment in the HBOT category.
